Key Value

• Real-time temperature monitoring
• Enables cold chain compliance
• Reduces spoilage and product loss
• Supports multi-zone tracking

How It Works

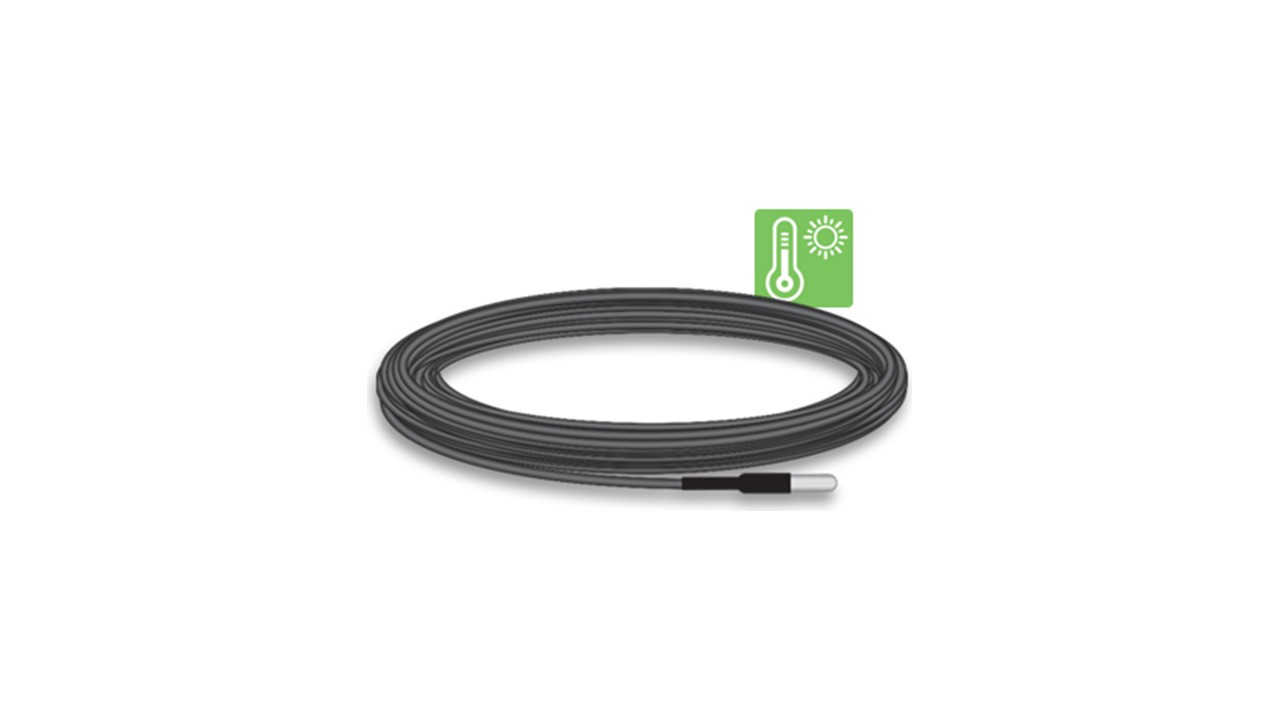

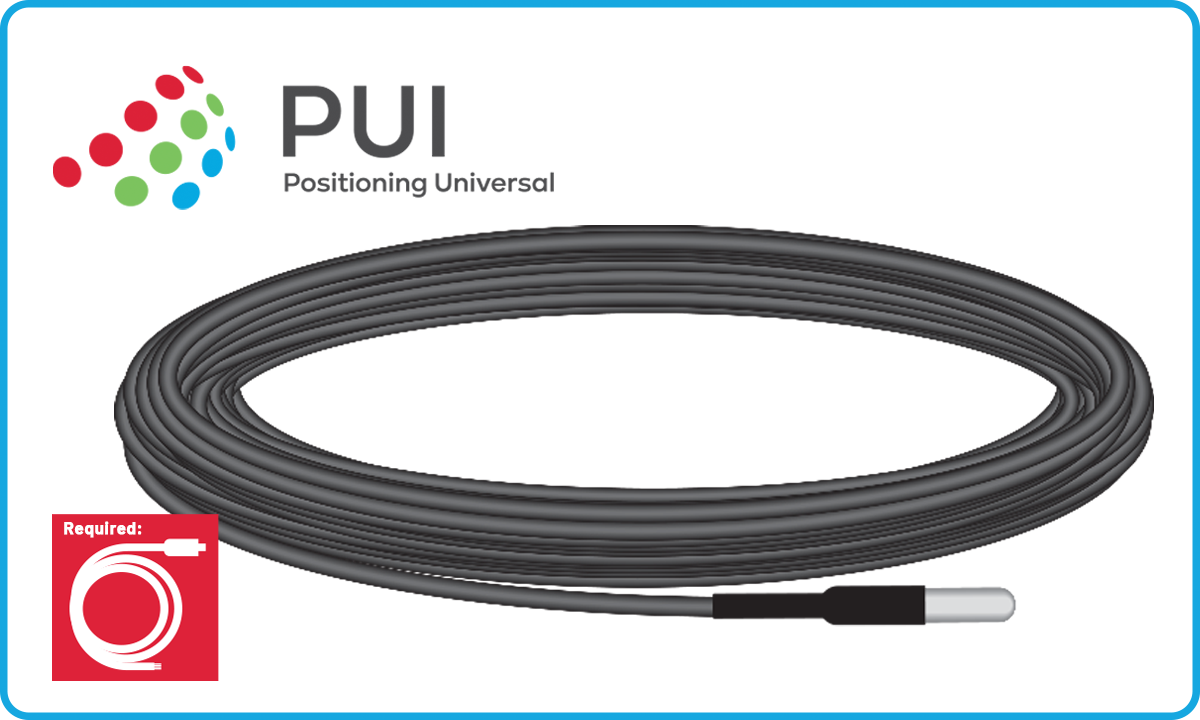

• Uses DS18B20 sensor (digital temperature probe)
• Communicates via 1-Wire interface through M8 cable

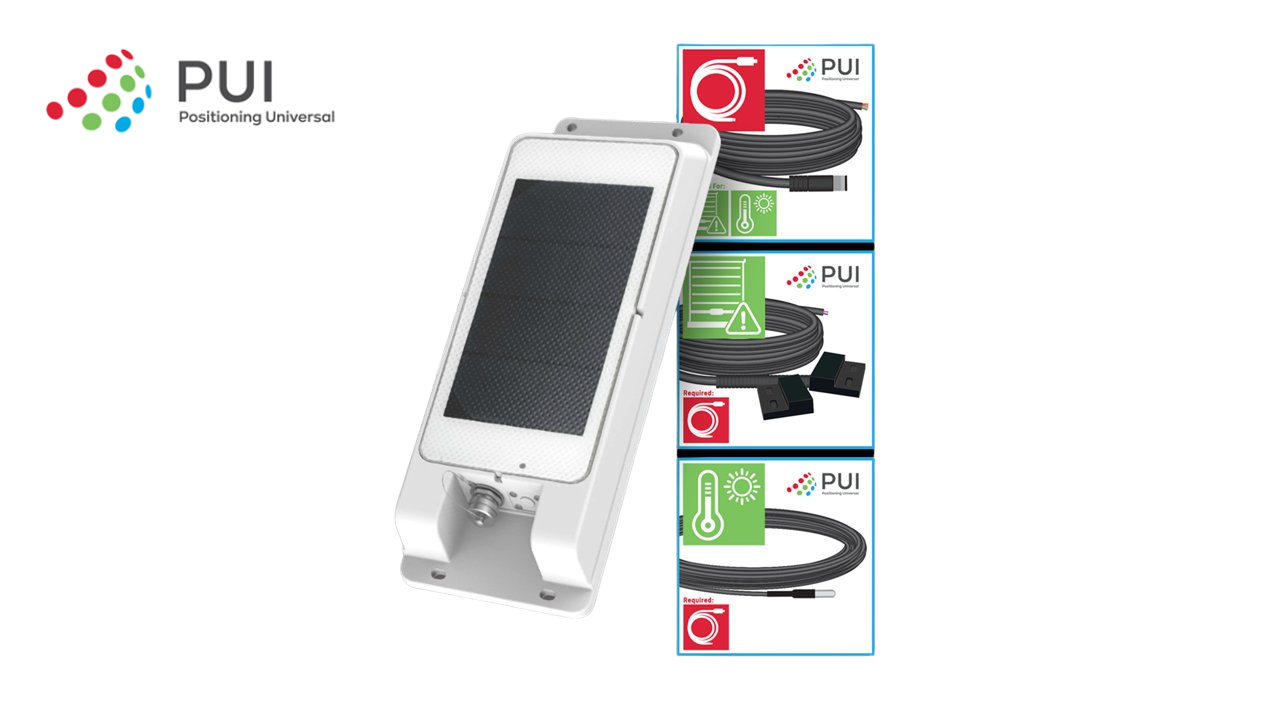

• Data is transmitted through TT603 to Geotab

Wiring:

• Yellow → Data (1-Wire)
• Black → Ground

Technical Highlights

• Accuracy: ±0.5°C (-10 to 85°C)
• Resolution: 12-bit
• Operating temp: -40°C to +85°C
• Cable length: 20m

Best for:

• Refrigerated trailers (reefers)
• Food & beverage logistics
• Pharma / sensitive goods
